8-port Fast Ethernet PoE Switch

Description

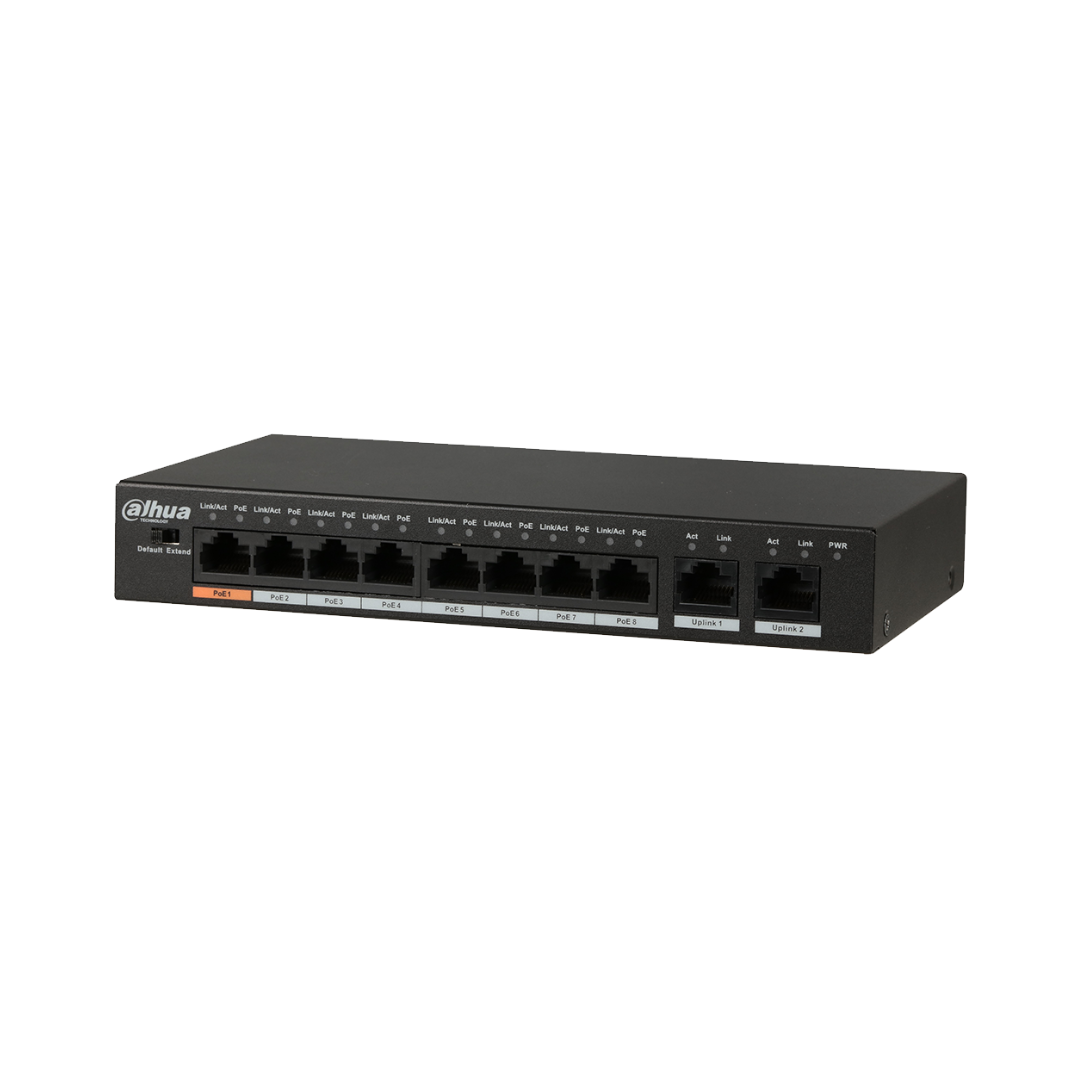

The DH-PFS3010-8ET-96 commercial PoE switch is specially designed for long-distance video transmission applications. The switch uses LD PoE technology to transmit power and data up to 250 m (820 ft). LD PoE extends transmission distances beyond the industry-standard 100 m, even with third-party PoE-compliant cameras. The switch provides eight (8) 10/100 Mbps PoE ports and two (2) 1000 Mbps uplink ports. The switch is also equipped with two transmission modes, Default and Extend, that are set by on-bard dip switches.

Model Number: DH-PFS3010-8ET-96

Layer 2                      Commercial Switch
Long-distance          PoE (LD PoE) Transmits Power and Data 250 m (820 ft)
Conforms to             IEEE802.3, IEEE802.3u and IEEE802.3X
Conforms to             IEEE802.3af and IEEE803.3at
Supports                   Hi-PoE (60 W)
MAC                          Auto-learning and Aging; 16K MAC Address Capacity
MDI/MDIX             Self-adaptation
