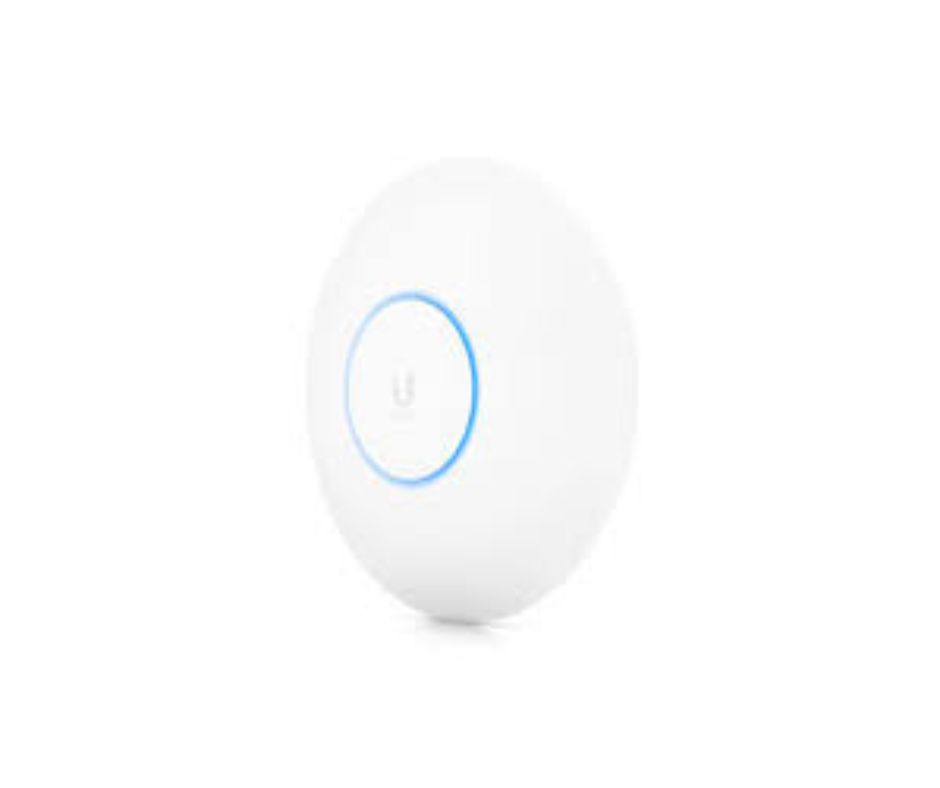

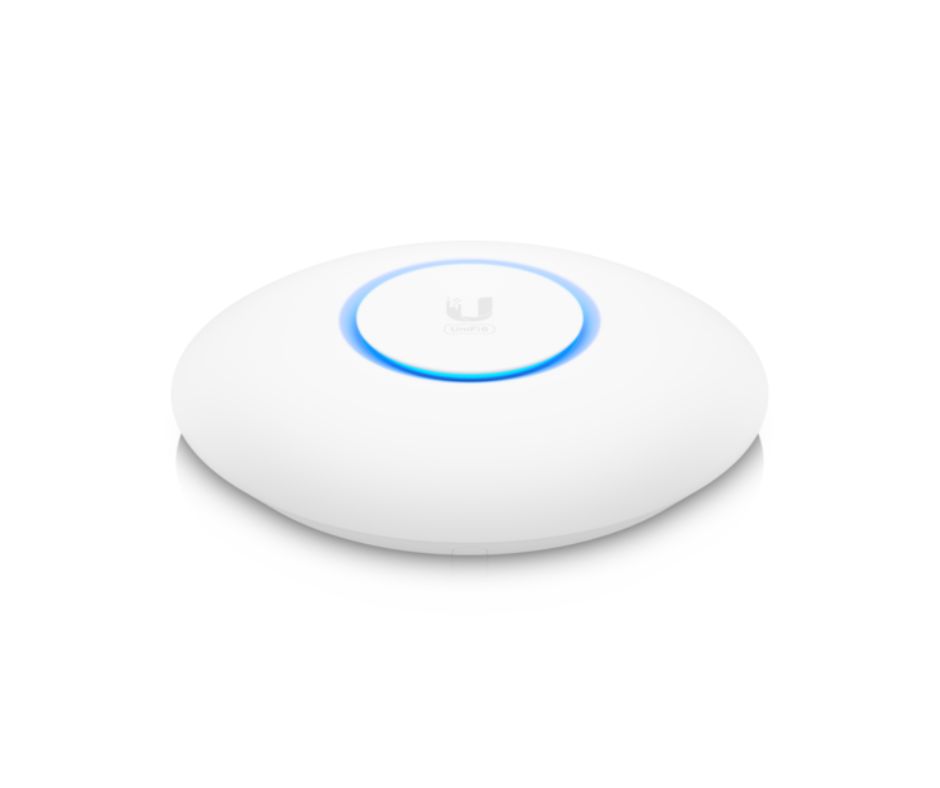

Access Point U6 Lite

Description

Access Point U6 Lite

Mechanical

Dimensions Ø160 x 33 mm (Ø6.3 x 1.3″)
Weight Without mount: 338 g (0.75 lb)
With mount: 413 g (0.91 lb)
Enclosure materials Polycarbonate, aluminum
Mount materials ABS, SGCC steel

Hardware

Networking interface (1) GbE RJ45 port
Management interface Ethernet
Power method PoE
Supported voltage range 44–57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
23 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
2402 Mbps
Antenna gain
2.4 GHz
5 GHz
3dBi
5.4 dBi
Button Factory reset
LEDs White/blue
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Zero wait DFS Not supported
Concurrent clients 300+
