Access Point WiFi 6 Long-Range

Description

Access Point WiFi 6 Long-Range

Dimensions Ø220 x 48 mm (Ø8.66 x 1.89″)
Weight Without mount: 800 g (1.76 lb)
With mount: 930 g (2.05 lb)
Enclosure material Polycarbonate
Mount material Stainless steel (SUS304)
Weatherproofing IP54

Hardware

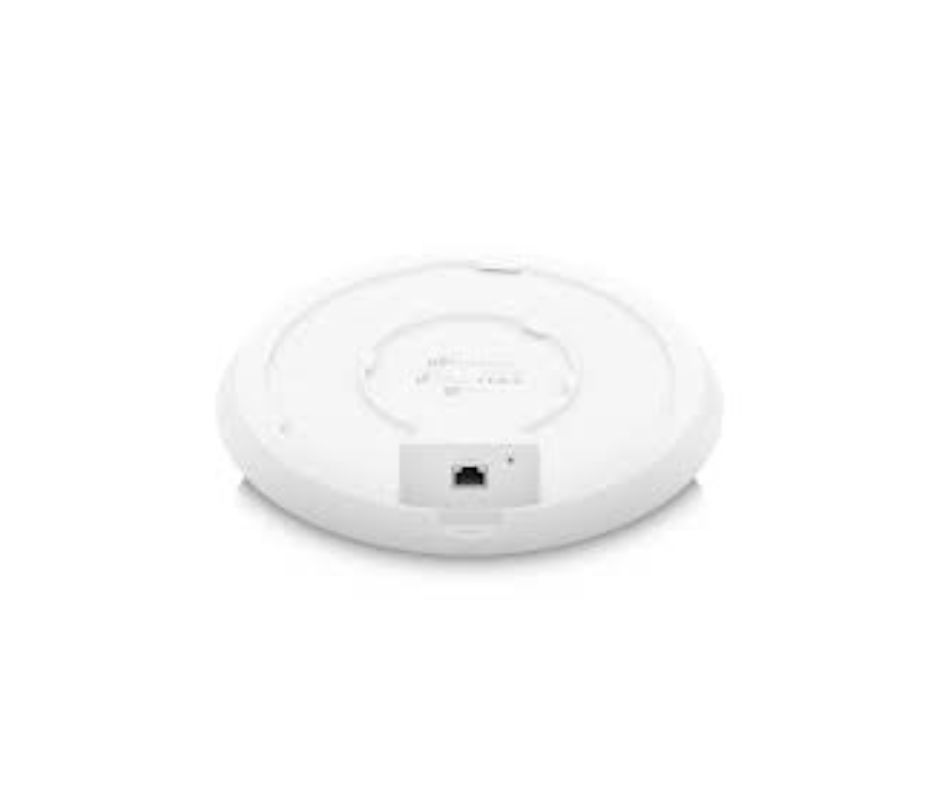

Networking interface (1) GbE RJ45 port
Management interface Ethernet

Bluetooth

Power method PoE+, passive PoE (48V)
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Not included)
Supported voltage range 44—57V DC
Max. power consumption 18.5W
Max. TX power
2.4 GHz
5 GHz
26 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
4 x 4
4 x 4
Throughput rate
2.4 GHz
5 GHz
600 Mbps
2400 Mbps
Antenna gain
2.4 GHz
5 GHz
4 dBi
5.5 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC

Software

WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
